Description

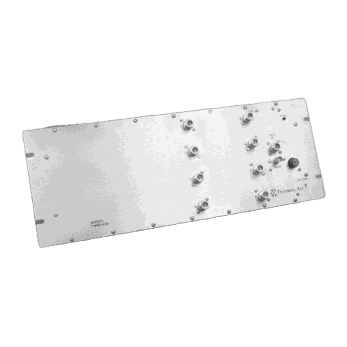

Telewave.io 8 Channel Receiver Distribution Panels are used to feed multiple receivers from a common antenna, reducing cost and tower loading, while providing consistent signal quality, output isolation, and higher output levels.
A typical receiver distribution panel includes a power supply, inline low noise preamplifier, and one or two 8-way splitters all on a single 19” panel. The preamplifier provides as much as +18 dB system gain to over come splitting and cable losses.
Telewave.io receiver panels are fully shielded, and each panel has sufficient bandwidth to cover an entire commercial or Public Safety band. Standard panels have one input, 8 or 16 outputs, and a -20 dB sample port on a 7″ x 19″ panel. A 24 channel model is available for 700/800 MHz only. For sites with limited rack space, the Telewave.io 1R and 2R series of compact panels is also available with 8 or 16 channels in 1 rack unit (1.75″ H), or up to 32 channels on a 3.5″ panel.
Additional panels may be added at any time to increase the number of available outputs. New panels can be directly coupled to existing panels without additional parts or tuning. Successful multicoupling generally requires some type of filtering between the receiver panel and antenna. Telewave.io manufactures a wide range of high quality preselector systems for transmitters and receivers.
Telewave.io receiver panels provide 8 or 16 matched 50 ohm outputs from one input, with typical 25 dB isolation between ports. The antenna port is tuned with a matching network to insure a balanced input. A -20 dB sample port is also provided for connection of external signal analyzers.
Telewave.io can supply panels for operation on +12 to +24 VDC, and 120 or 220/240 VAC. Other voltage options are available on request. A battery backup on the DC input can provide uninterrupted operation during a site power failure (charging output not supplied). Tuning range and bandwidth varies depending on frequency band and system components. Please contact Telewave.io to discuss your requirements with a sales engineer to ensure maximum system performance.
NOTES
- All unused ports must be terminated with 50 ohms. TWL-01 terminating resistor is available for this purpose.
- Panel gain is measured from the input port to any output port. Gain is adjusted at the factory according to individual system requirements. Standard gain is 6 dB +/-1 dB if not specified.
- Tuning range and bandwidth vary depending on frequency band and system components.
- Exact frequencies and system gain must be specified with order.
- 8, 16, and 24 channel Receiver Distribution Panels are 19” W x 7” H x 3” D, and are normally supplied with N-Female connectors, -20 dB test port, and 120 or 220 VAC 60 Hz / + 12 VDC power supply. Typical system gain 6 dB (factory adjustable).
