Description

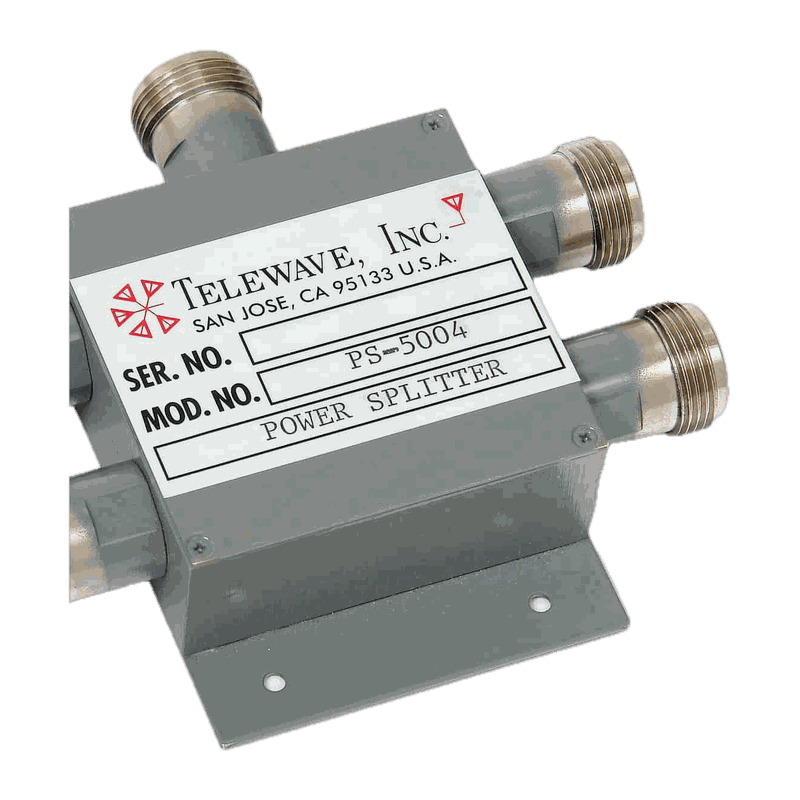

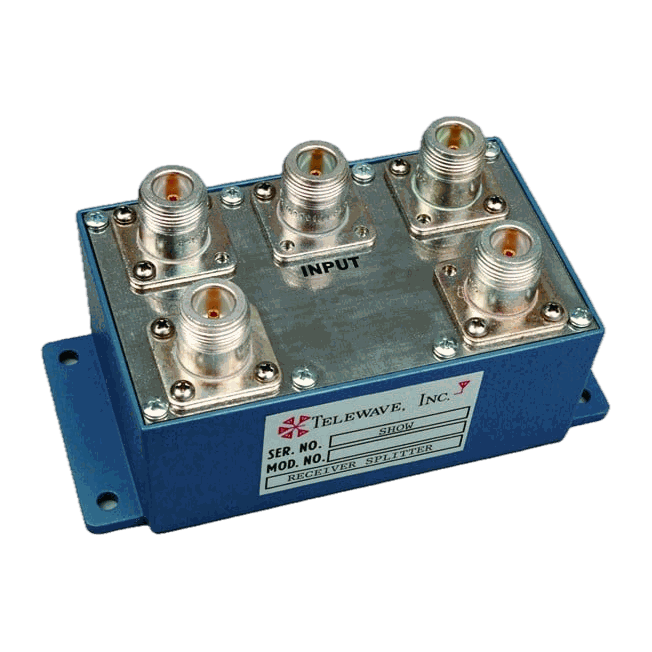

Telewave.io 4-Way Receiver Power Splitters provide 4 balanced 50 ohm receiver outputs from one input. The antenna port is tuned with a matching network to insure a balanced input.
Since the input signal is split evenly between all ports, the available signal at each output port will be 3 to 9 dB below the input. For this reason, a preamp is generally used to compensate for coupler and cable losses.
These rugged, compact splitters are commonly used in RX multicouplers, and are not intended to be used with transmitters. Telewave makes a full line of transmitter power dividers with 500 watt power capability for this purpose.
